## Example 1: Fourth-order LTI model with coloured process noise in closed loop

```close all; clear; clc;
```

## The fourth-order LTI model with coloured process noise

```% state-space matrices
A = [0.67 0.67 0 0; -0.67 0.67 0 0; 0 0 -0.67 -0.67; 0 0 0.67 -0.67];
B = [0.6598 -0.5256; 1.9698 0.4845; 4.3171 -0.4879; -2.6436 -0.3416];
K = [-0.6968 -0.1474; 0.1722 0.5646; 0.6484 -0.4660; -0.9400 0.1032];
C = [-0.3749 0.0751 -0.5225 0.5830; -0.8977 0.7543 0.1159 0.0982];
D = zeros(2);

% open-loop system
OL = ss(A,[B K],C,[D eye(2)],1);

% closed-loop system
F = diag([0.25 0.25]);
CL = feedback(OL,F,[1 2],[1 2],-1);
```

## Open-loop identification experiment

Simulation of the model in open loop

```% input signals
N = 4000; % number of samples
t = (0:N-1)';   % time samples
r = randn(N,2); % excitation signal

% noise
e = randn(N,2); % noise signal

% simulation
y0 = lsim(OL,[r zeros(N,2)],t);
y = lsim(OL,[r e],t);
disp('Signal to noise ratio (SNR) (open-loop)')
snr(y,y0)
```
```Signal to noise ratio (SNR) (open-loop)

ans =

11.0626    7.0052

```

Identification of the model in open loop

```% parameters
n = 4;    % order of system
f = 10;   % future window size
p = 10;   % past window size

% PBSID-varx
[S,X] = dordvarx(r,y,f,p,'tikh','gcv');

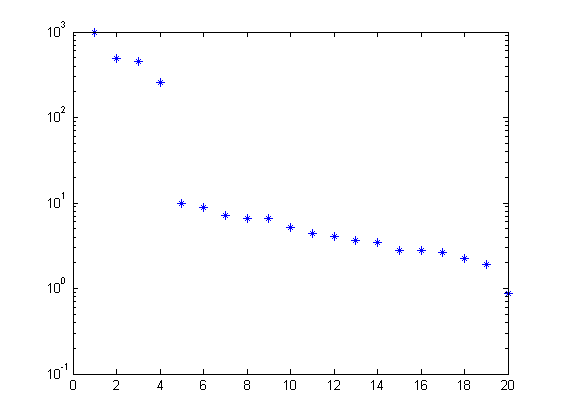

figure, semilogy(S,'*');
x = dmodx(X,n);
[Ai,Bi,Ci,Di,Ki] = dx2abcdk(x,r,y,f,p);

% PBSID-varmax
[S,X] = dordvarmax(r,y,f,p,'els',1e-6,'tikh','gcv');

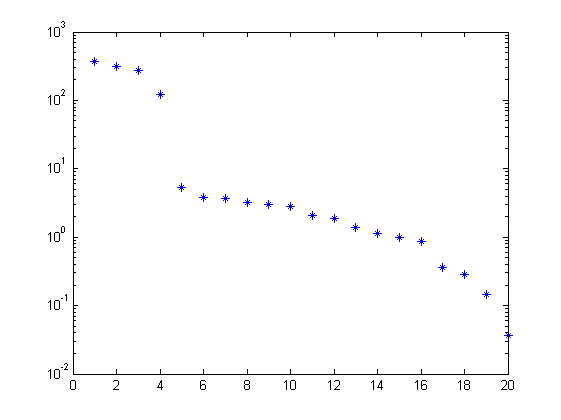

figure, semilogy(S,'*');
x = dmodx(X,n);
[Av,Bv,Cv,Dv,Kv] = dx2abcdk(x,r,y,f,p);
```

Verification results

```% verification using variance accounted for (VAF) (open loop)
OLi = ss(Ai,Bi,Ci,Di,1);
OLv = ss(Av,Bv,Cv,Dv,1);
y = lsim(OL(1:2,1:2),r,t);
yi = lsim(OLi,r,t);
yv = lsim(OLv,r,t);
disp('VAF with PBSID-varx (open loop)')
vaf(y,yi)
disp('VAF with PBSID-varmax (open loop)')
vaf(y,yv)
```
```VAF with PBSID-varx (open loop)

ans =

99.8974
99.4843

VAF with PBSID-varmax (open loop)

ans =

99.9657
99.7779

```

Identification results

```% plot eigenvalues (open loop)
figure
hold on
title('poles of identified system (open-loop)')
[cx,cy] = pol2cart(linspace(0,2*pi),ones(1,100));
plot(cx,cy,'k');
plot(real(pole(OL)),imag(pole(OL)),'k+','LineWidth',0.1,'MarkerEdgeColor','k','MarkerFaceColor','k','MarkerSize',10);
plot(real(eig(Ai)),imag(eig(Ai)),'rx');
plot(real(eig(Av)),imag(eig(Av)),'bx');
axis([-1 1 -1 1]);
axis square
legend('STABBND','TRUE','PBSID-varx','PBSID-varmax','Location','East');
hold off

% simulation

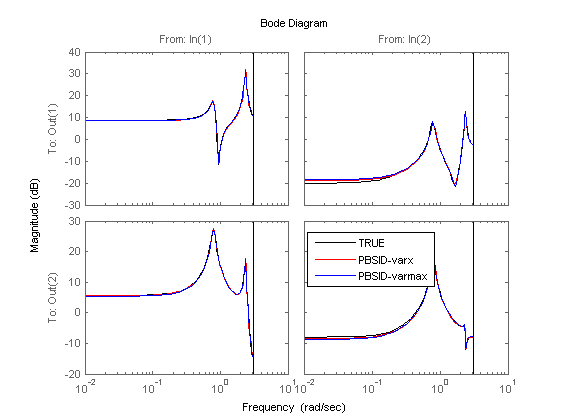

figure, bodemag(OL(1:2,1:2),'k',OLi,'r',OLv,'b');
legend('TRUE','PBSID-varx','PBSID-varmax','Location','Best');
```

## Closed-loop identification experiment

Simulation of the model in closed loop

```% simulation of closed loop
e = 0.7.*e;
y = lsim(CL,[r e],t);
u = (r' - F*y')';
y0 = lsim(OL,[u zeros(N,2)],t);
disp('Signal to noise ratio (SNR) (closed-loop)')
snr(y,y0)
```
```Signal to noise ratio (SNR) (closed-loop)

ans =

9.8855    8.6128

```

Identification of the model in closed loop

```% PBSID-varx (closed loop)
[S,X] = dordvarx(u,y,f,p,'tikh','gcv');

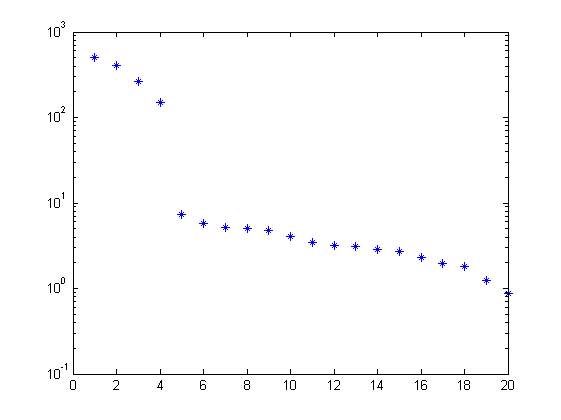

figure, semilogy(S,'*');
x = dmodx(X,n);
[Ai,Bi,Ci,Di,Ki] = dx2abcdk(x,u,y,f,p);

% PBSID-varmax (open loop)
[S,X] = dordvarmax(u,y,f,p,'els',1e-6,'tikh','gcv');
figure, semilogy(S,'*');
x = dmodx(X,n);
[Av,Bv,Cv,Dv,Kv] = dx2abcdk(x,u,y,f,p);
```

Verification results

```% verification using variance accounted for (VAF) (closed loop)
OLi = ss(Ai,Bi,Ci,Di,1);
OLv = ss(Av,Bv,Cv,Dv,1);
y = lsim(OL(1:2,1:2),u,t);
yi = lsim(OLi,u,t);
yv = lsim(OLv,u,t);
disp('VAF with PBSID-varx (closed loop)')
vaf(y,yi)
disp('VAF with PBSID-varmax (closed loop)')
vaf(y,yv)
```
```VAF with PBSID-varx (closed loop)

ans =

99.1098
98.9555

VAF with PBSID-varmax (closed loop)

ans =

99.1401
99.3097

```

Identification results

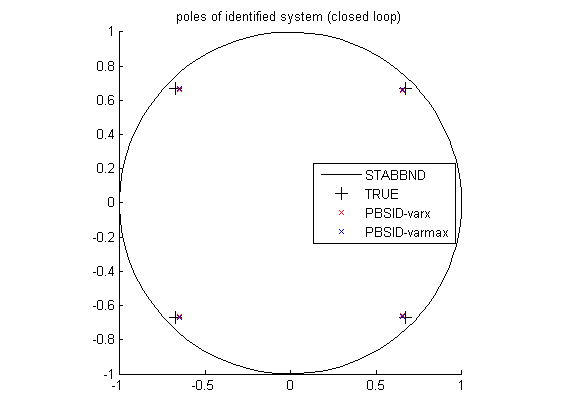

```% plot eigenvalues (closed loop)
figure
hold on
title('poles of identified system (closed loop)')
[cx,cy] = pol2cart(linspace(0,2*pi),ones(1,100));
plot(cx,cy,'k');
plot(real(pole(OL)),imag(pole(OL)),'k+','LineWidth',0.1,'MarkerEdgeColor','k','MarkerFaceColor','k','MarkerSize',10);
plot(real(eig(Ai)),imag(eig(Ai)),'rx');
plot(real(eig(Av)),imag(eig(Av)),'bx');
axis([-1 1 -1 1]);
axis square
legend('STABBND','TRUE','PBSID-varx','PBSID-varmax','Location','East');
hold off

% simulation (closed loop)

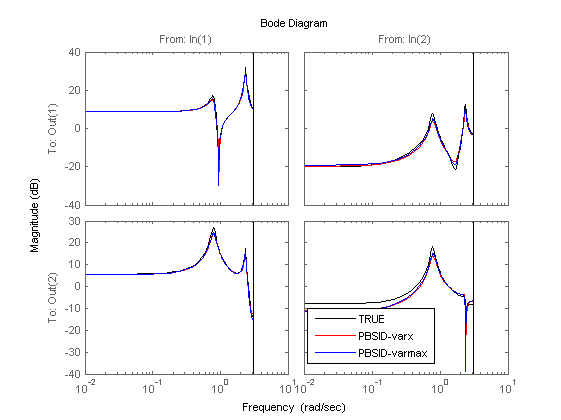

figure, bodemag(OL(1:2,1:2),'k',OLi,'r',OLv,'b');
legend('TRUE','PBSID-varx','PBSID-varmax','Location','Best');
```
