## Example 15: Fourth-order Wiener model

```close all; clear; clc;
```

## The fourth-order LTI model with coloured process noise

```% state-space matrices
A = [0.67 0.67 0 0; -0.67 0.67 0 0; 0 0 -0.67 -0.67; 0 0 0.67 -0.67];
B = [0.6598 -0.5256; 1.9698 0.4845; 4.3171 -0.4879; -2.6436 -0.3416];
K = [-0.6968 -0.1474; 0.1722 0.5646; 0.6484 -0.4660; -0.9400 0.1032];
C = [-0.3749 0.0751 -0.5225 0.5830; -0.8977 0.7543 0.1159 0.0982];
D = zeros(2);

% open-loop system
OL = ss(A,[B K],C,[D eye(2)],1);
```

## Open-loop identification experiment

Simulation of the model in open loop

```% input signals
N = 1000; % number of samples
t = (0:N-1)';   % time samples
r = randn(N,2); % excitation signal

% noise
e = 0.04.*randn(N,2); % noise signal

% simulation of open loop
y0 = lsim(OL,[r zeros(N,2)],t);
y = lsim(OL,[r e],t);
fy = [sign(y(:,1)).*sqrt(abs(y(:,1))) sign(y(:,2)).*sqrt(abs(y(:,2)))];
disp('Signal to noise ratio (SNR) (open-loop)')
snr(y,y0)
```
```Signal to noise ratio (SNR) (open-loop)

ans =

38.4416   32.3606

```

Identification of the model in open loop

```% parameters
n = 4;    % order of system
f = 10;   % future window size
p = 10;   % past window size

% PBSID-varx (open loop)
[us,Du,ys,Dy] = sigscale(r,fy);
[S,x,yi] = wordvarx(us,ys,f,p,1e-4,1e-8);

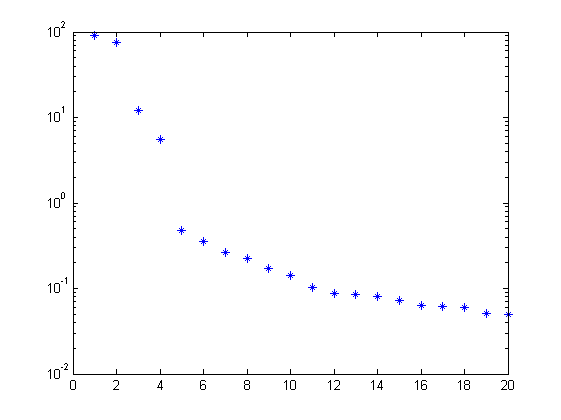

figure, semilogy(S,'*');
x = wmodx(x,n);
[Ai,Bi,Ci,Di,Ki] = wx2abcdk(x,us,yi,f,p);
```

Verification results

```% variance accounted for (open loop)
Qy = (Dy\y(p+1:p+size(yi,2),:)')*pinv(yi);
OLi = ss(Ai,Bi/Du,Dy*Qy*Ci,Dy*Qy*Di,1);
yv = lsim(OL(1:2,1:2),r,t);
ye = lsim(OLi,r,t);
disp('VAF (open-loop)')
vaf(yv,ye)
```
```VAF (open-loop)

ans =

99.9971
99.9347

```

Identification results

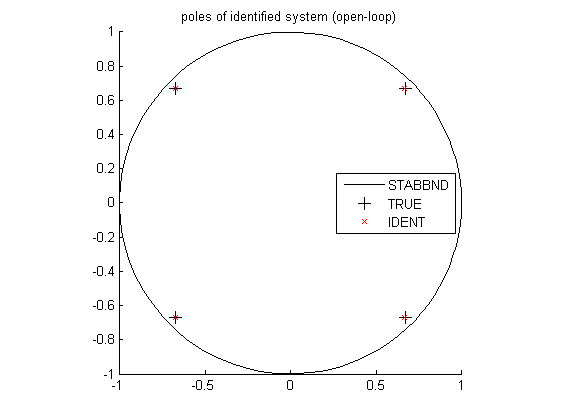

```% plot eigenvalues (open loop)
figure
hold on
title('poles of identified system (open-loop)')
[cx,cy] = pol2cart(linspace(0,2*pi),ones(1,100));
plot(cx,cy,'k');
plot(real(pole(OL)),imag(pole(OL)),'k+','LineWidth',0.1,'MarkerEdgeColor','k','MarkerFaceColor','k','MarkerSize',10);
plot(real(eig(Ai)),imag(eig(Ai)),'rx');
axis([-1 1 -1 1]);
axis square
legend('STABBND','TRUE','IDENT','Location','East');
hold off

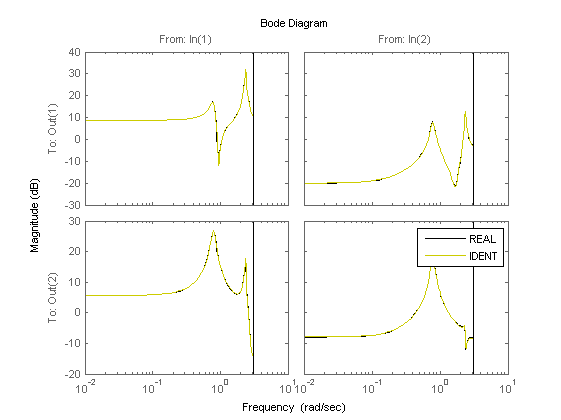

% simulation (open loop)
figure, bodemag(OL(1:2,1:2),'k',OLi,'y');
legend('REAL','IDENT');

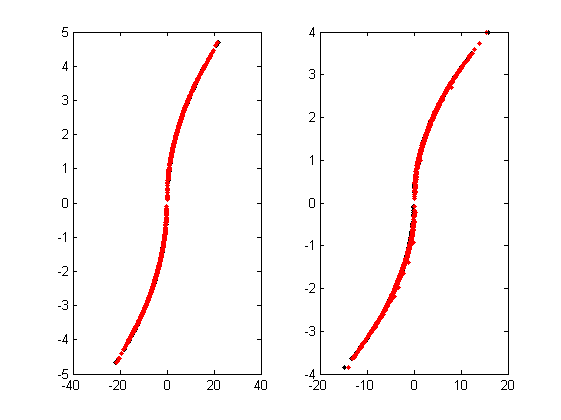

% plot the non-linear function
yi = Dy*Qy*yi;
figure, subplot(1,2,1), plot(y(:,1),fy(:,1),'k.',yi(1,:)',fy(p+1:p+size(yi,2),1),'r.');
subplot(1,2,2), plot(y(:,2),fy(:,2),'k.',yi(2,:)',fy(p+1:p+size(yi,2),2),'r.');
```
